Endoscopic cobra bone laser cutting machine (three-axis)

Application scope : Application Scope Medical endoscopes, industrial endoscopes, electronic endoscopes, snake bone laser microprocessing Technical Certification . CE . ISO9001 . ISO13485

Whatsapp：8613775288830‬

E-mail：info@yuncogroup.com

Detail

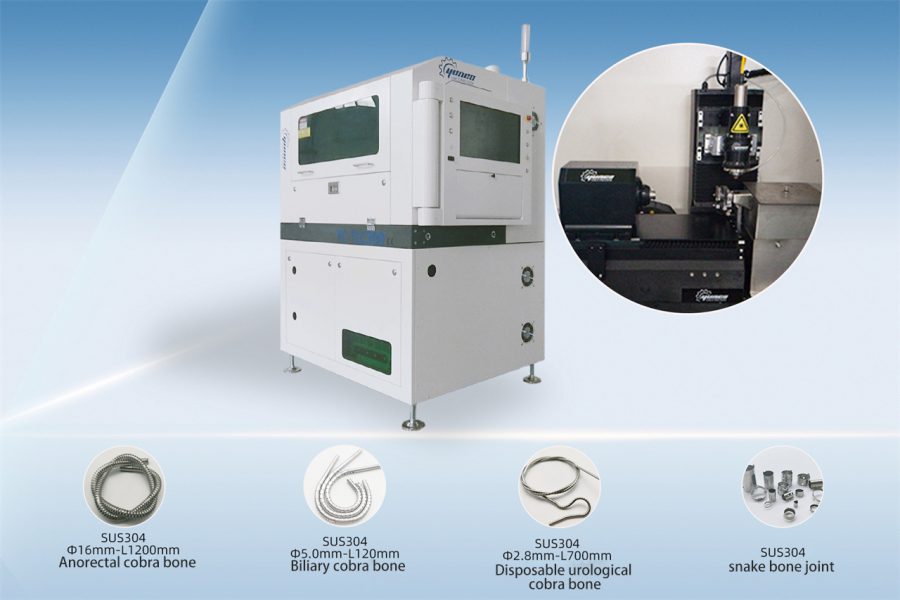

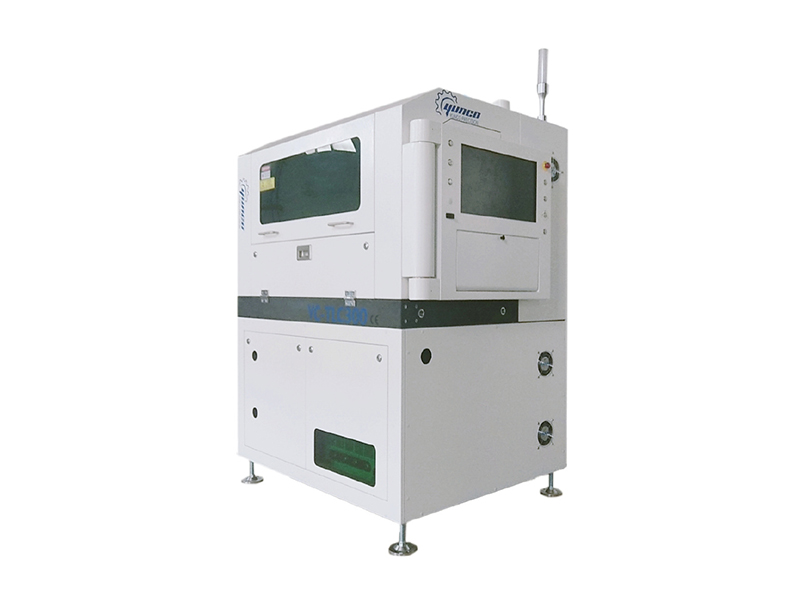

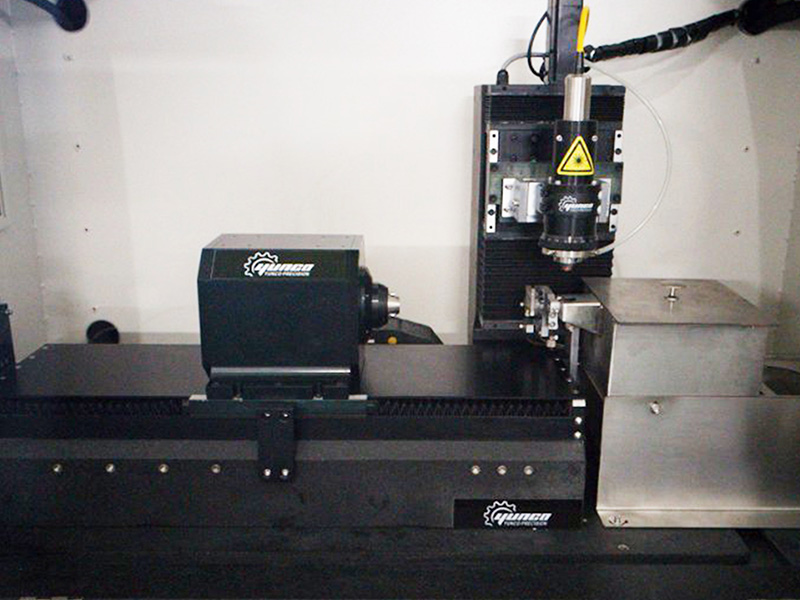

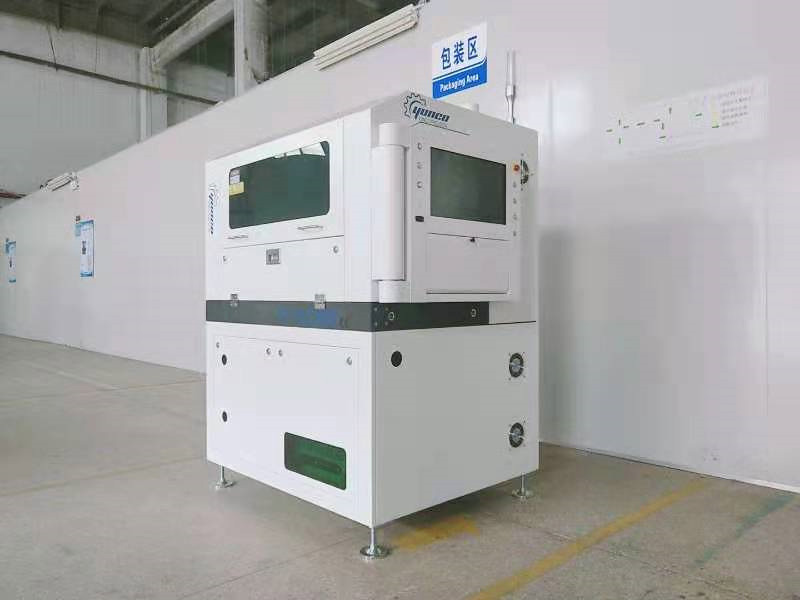

Endoscopic cobra bone laser cutting machine (three-axis)插图

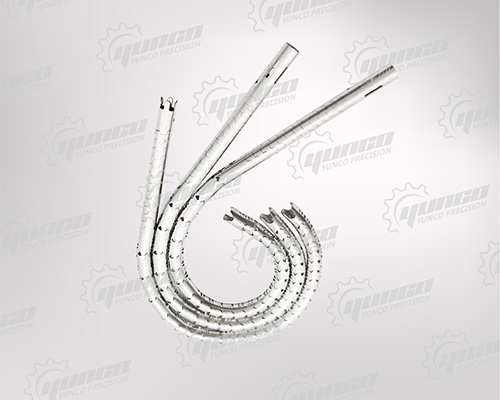

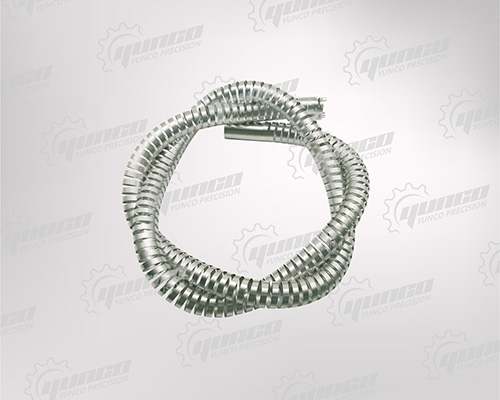

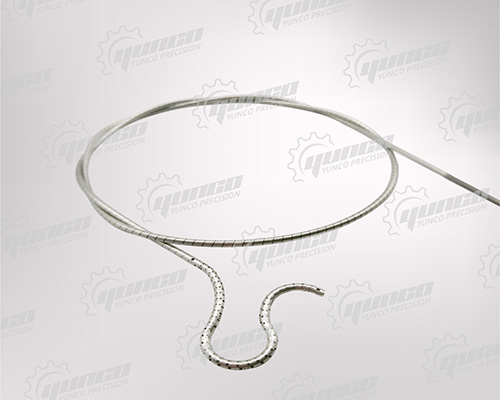

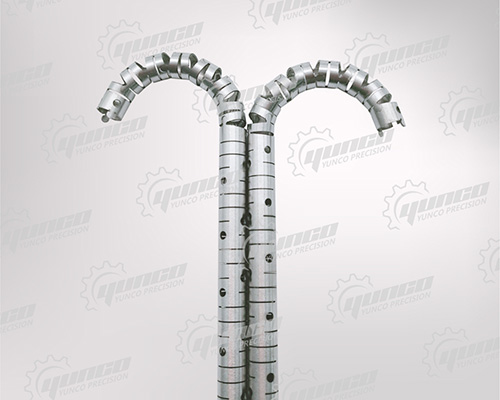

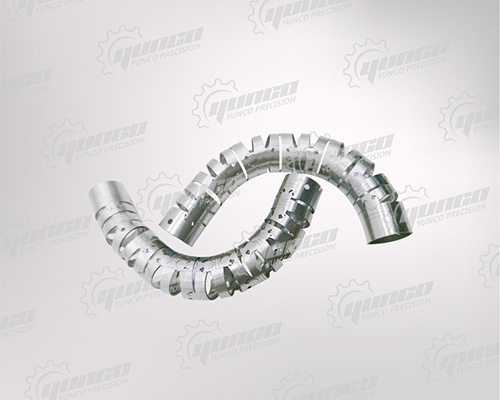

High precision machining

. Small cutting slit width: 15~30um
. High processing precision: ≤±10um
. Good cutting quality: no burrs & smooth cutting
. High processing efficiency: cutting through one side of the pipe wall at one time, continuous automatic feeding and processing

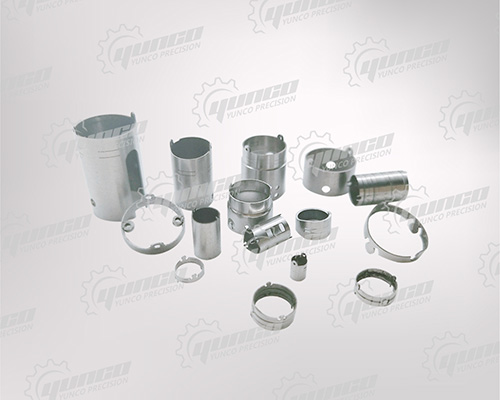

Strong adaptability
. Laser cutting, drilling and grooving precision processing capabilities for the centripetal opening characteristics of equal-diameter tubes
. Can process 304&316L&Ni-Ti&L605 and other alloy materials
. Compatible with precision thin-walled tube clamping systems such as precision D-type chucks & ER series chucks & three-jaw chucks
.Using a combined precision thin-walled tube bushing support system that adapts to shape tolerance changes
. Provide supporting solutions such as continuous automatic feeding processing of precision thin-walled tubes & wet and dry cutting, sealing and splicing.
. Equipped with self-developed laser micromachining 2D & 2.5D & 3D CAM software system

Flexible design
. Follow the ergonomic design concept, exquisite and simple
. Provides optional function for machine vision system to monitor dynamic laser processing process online in real time.
. Flexible combination of software & hardware functions, supporting personalized function configuration & intelligent production management
.Support forward innovative design from component level to system level
. Open control & laser micromachining software system is easy to operate & intuitive interface

Technical Parameters

Maximum operating speed	300mm/s (X); 50mm/s (Z);600rpm(θ)；
Positioning accuracy	±3um (X); ±3um (Z); ±15arcsec (θ);
Repeat targeting accuracy	±1um (X); ±1um (Z); ±3arcsec (θ);
Cutting seam width	20um~30um;
Processing material	304, 316L, Ni-Ti, L605, etc.Alloys;
Pipe blank length	<2.5m (customizable support fixturecompatible with unlimited length pipe feeding);
Processing wall thickness	0~1.0±0.02 mm;
Pipe processing range	Φ0.3~Φ7.5Φ1.0~Φ16.0±0.02 mm;
Processing scope	0～300mm (Longer productscanbe processed by segmented splicing);
Remainder length	60mm;
Laser type	Fiber laser
Laser wavelength	1030~1070nm±10nm;
Laser Power	100W&200W&300W< /strong>&500W available;
Power supply	220V±10%, 50Hz; AC 15A (main circuit breaker);
Compatible file formats	DXF,DWG;
Device dimensions	1200mmx1300mmx1700mm;
Equipment Weight	1200Kg;
