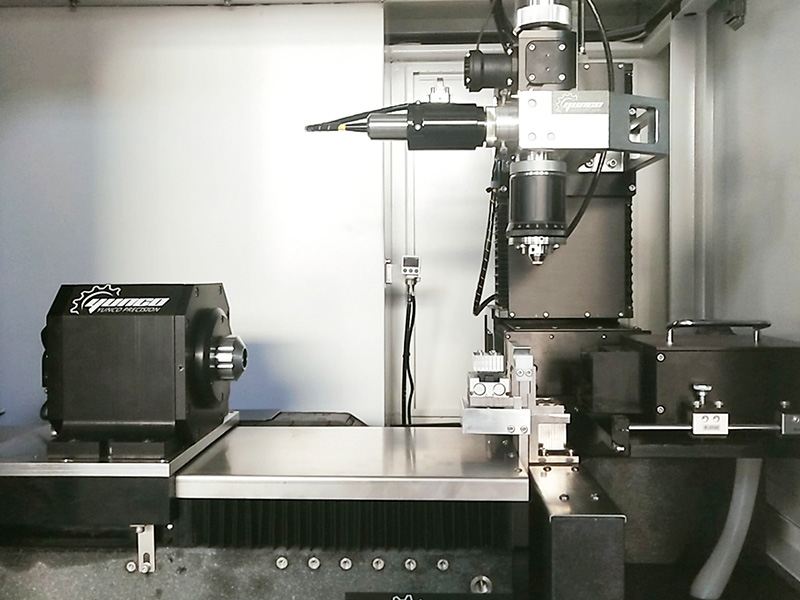

YC-HTLC300

Medical hypotube & spiral tube laser cutting machine

Application scope : Application scope Laser micromachining of precision thin-walled metal tubes such as medical flexible hypotubes & spiral tubes & spring tubes Technical certification . CE . ISO9001 . ISO13485

Whatsapp：8613775288830‬

E-mail：info@yuncogroup.com

Detail

High precision machining
. Small cutting slit width: 15~30um
. High processing accuracy: ≤±5um
. Good cutting quality: no burrs & smooth cutting
. High processing efficiency: cutting through one side of the pipe wall at one time, continuous automatic feeding and processing

Strong adaptability
. Laser cutting, drilling and grooving precision processing capabilities for the centripetal opening characteristics of equal-diameter tubes
. Can process 304&316L&Ni-Ti&L605 and other alloy materials
. Compatible with precision thin-walled tube clamping systems such as precision D-type chucks & ER series chucks & three-jaw chucks
.Using a combined precision thin-walled tube bushing support system that adapts to shape tolerance changes
. Provide supporting solutions for continuous automatic feeding and processing of precision thin-walled tubes & automatic loading and unloading.
. Equipped with self-developed laser micromachining 2D & 2.5D & 3D CAM software system

Flexible design
. Follow the ergonomic design concept, exquisite and simple
. Provides optional function for machine vision system to monitor dynamic laser processing process online in real time.
. Flexible combination of software & hardware functions, supporting personalized function configuration & intelligent production management
.Support forward innovative design from component level to system level
. Open control & laser micromachining software system is easy to operate & intuitive interface

Technical Parameters

Maximum operating speed	300mm/s (X); 600rpm (θ); 100mm/s (Z);
Positioning accuracy	±2um(X);±15arcsec(θ);±3um(Z);
Repeat positioning accuracy	±0.5um(X);±3arcsec(θ);±1um(Z); < /p>
Cutting seam width	15um~30um;
Processing material	304&316L&Ni-Ti&L605 and other alloy materials;
Pipe blank length	<2.5m;
Processing wall thickness	0~0.5±0.02 mm;
Processing pipe diameter	Φ0.1~Φ7.5±0.02mm&Φ0.3~Φ16.0&# 177;0.02mm;
Single processing range	0～300mm (longer products will be processed by segmented splicing);
Laser type	Fiber laser;
Laser wavelength	1030~1070±10nm;
Laser power	100W&200W&250W&500W for selection;
Power supply	220V±10%; 50Hz; AC 20A (main circuit breaker)
Compatible file formats	DXF, DWG;
Device dimensions	1600mmx950mmx1750mm;
Device weight	1500Kg;
